Plans for sale to build your own canoe
A full set of drawings showing the hull lines, full size stem, sternpost and construction mould outlines are available to purchase. Full construction details and notes for the hull and rig come together with a sail plan. These will enable you to build my version of J.H Rushton’s Princess model using glued clinker ply construction. You will require five sheets of good quality marine plywood . You will also need care, time, space and some basic woodworking ability, but it might still be worth considering this design, even if it is your first boatbuilding project.
Price (£)
One full set of prints (15 sheets)
£90 + postage
| No | Title | Scale | Size |
|---|---|---|---|
| 01 | Moulds | Full Size | Oversize A1 39″x24″ |
| 02 | Stern | Full Size | A1 |
| 03 | Sternpost | Full Size | A1 |
| 04 | Bulkheads | Full Size | Oversize A1 39″x24″ |
| 05 | Hull & Deck Plan | 1:8 | A1 |
| 06 | Hull Elevation | 1:8 | A1 |
| 07 | Centreboard case | Full Size | A1 |

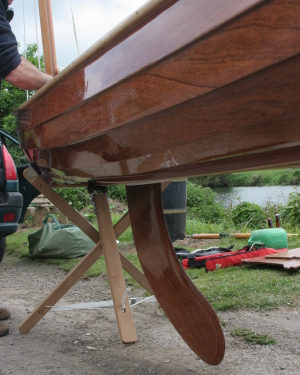

| 08 | Centrebaord | Full Size | Oversize A1 39″x24″ |

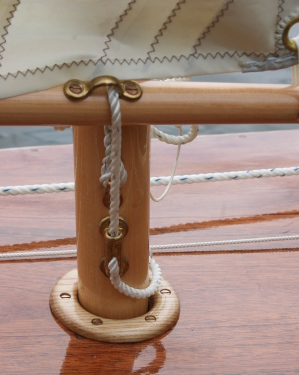

| 09 | Cruising Rig | 1:8 | A1 |
| 10 | Sails | 1:8 | A1 |
| 11 | Rudder | Full Size | Oversize A1 39″x24″ |

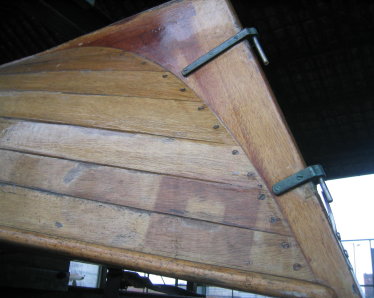

| 12 | Rudder Pintels & Gudgeons | Full Size | A3 |
| 13 | Tiller | As noted | A3 |
| 14 | Tabernacle | Full Size | A3 |
| 15 | Stainless plates for tabernacle | Full Size | A3 |

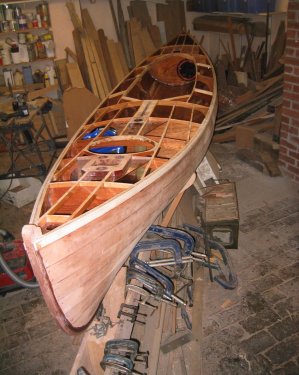

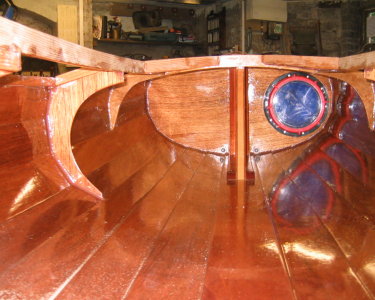

A hand-built canoe, ready to sail
A paddleable sailing canoe for use by one or two people, based on J.H Rushton’s Princess model, built using modern timber construction.
Measurements
Canoe
| LOA: | 15′ 8″ |
| Beam: | 32″ |
| Sail area: | 45+20= 65 sq ft |
| Hull weight: | 80 lb approx |
Construction

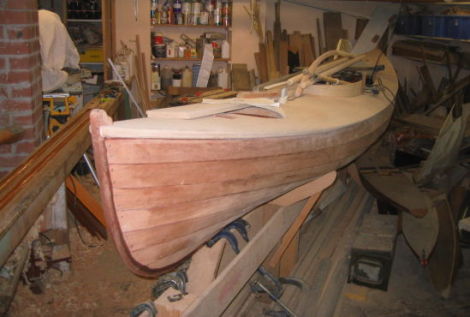

| Hull & Deck: | 4mm marine ply |
| Keel, Stem & Sternpost: | Mahogany |
| Rail, coaming & trim: | Ash |
| Finish: | Epoxy + 2 pack polyurethane |
| Mast & Spars: | Sitka Spruce / Cedar |
| Sails (by James Lawrence): | Cream Terylene |
Price (£)
Not currently available to buy
Terms: F.O.B Bristol UK

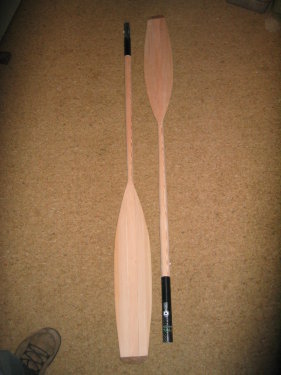

Double Paddles
| Length: | 9′ max (exact length to suit purchaser) |
| weight: | 2.75 lb (approx) |
| Parts: | 2 |
| Joint: | “Switchlok” variable feathering joint |
| Shaft: | Sitka spruce |
| Blades: | Cedar |
Optional extra (only available with Canoe)
